In the previous lesson, we saw how to define targets and attach properties to them. We learned that the PUBLIC, PRIVATE, and INTERFACE keywords control how these properties are shared with direct consumers. A consumer that links to our library will inherit its PUBLIC and INTERFACE properties, but not its PRIVATE ones.

This is the key to building modular components, but it's only half the story. Real-world projects are not simple, linear chains of dependencies. They are complex webs, where an application might depend on a library, which in turn depends on several other libraries, and so on.

This lesson explores how CMake manages these indirect relationships. We'll see how target_link_libraries() does more than just specify a link; it builds a dependency graph.

By understanding this graph, you'll see how CMake automatically handles transitive dependencies and solves the age-old problem of link order, freeing you from one of the most tedious aspects of C++ development.

Indirect Dependencies through Targets

In addition to properties being PUBLIC, PRIVATE, or INTERFACE, the links between our targets can also have these visibility settings. For example, when we specify that GreeterApp depends on GreeterLib, we can declare that relationship PUBLIC:

1target_link_libraries(GreeterApp PUBLIC GreeterLib)

Setting the visibility of the relationships between targets is what enables CMake to do a lot of heavy lifting once our projects get large. It allows us to define only the direct dependencies, whilst CMake handles all the indirect dependencies automatically.

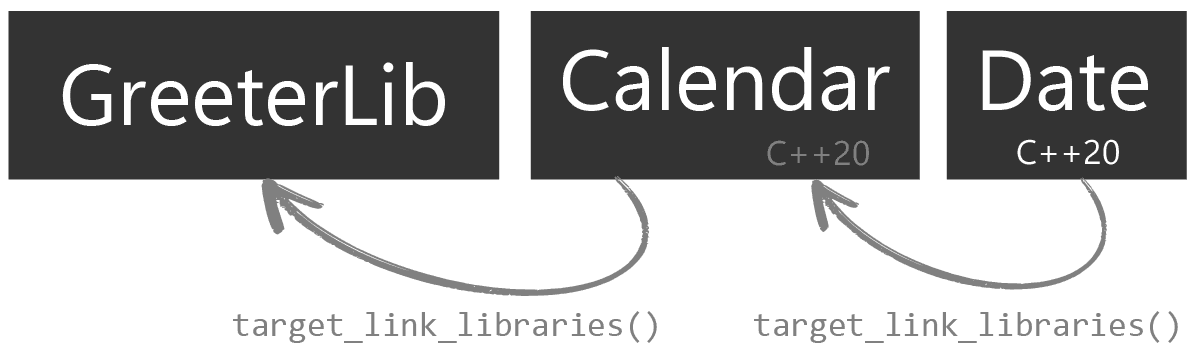

For example, let's imagine we introduce another header-only library, Calendar, that depends on Date. Compiling Date's header files requires C++20, so Calendar needs to keep track of that requirement. Our Date properly specifies that requirement using a target_compile_features() with INTERFACE visibility, so it will automatically be propagated to Calendar when we link them using target_link_libraries().

However, what if another library, such as GreeterLib links to Calendar?

Now, GreeterLib also requires C++20 to compile successfully. This is true even when:

GreeterLib doesn't directly link to Date, it only links to Calendar. It may not even know that Date exists and it shouldn't need to. From GreeterLib's perspective, it just wants to use Calendar and doesn't care about its internal implementation details.
Calendar doesn't directly specify that it needs C++20. It only inherits that requirement from Date.

In spite of both of these constraints, GreeterLib still has a transitive dependency on Date, so it needs to respect its requirements and use C++20.

These webs of dependencies can get extremely complex in larger projects, with dozens of targets and hundreds of direct and indirect connections between them. Managing this dependency graph is one of the strengths of CMake.

Visibility of Relationships

The target_link_libraries() command is the engine that allows CMake to construct this dependency graph. Let's imagine we have this command:

1target_link_libraries(Calendar PUBLIC Date)

When you write this, you are declaring that Calendar depends on target Date. Accordingly, CMake will now ensure that Calendar inherits all of Date's PUBLIC and INTERFACE properties, including the C++20 requirement.

Furthermore, because we used the PUBLIC keyword in the target_link_libraries() call itself, that means this relationship between Calendar and Date is also visible and inheritable. It means that any target that links to Calendar will now also be transitively linked to Date, and will also inherit Date's PUBLIC and INTERFACE properties in much the same way that Calendar did.

Let's continue to build our graph by declaring that GreeterLib depends on Calendar:

1target_link_libraries(Calendar PUBLIC Date)
2
3target_link_libraries(GreeterLib Calendar)

Not only will CMake understand it needs to link GreeterLib to Calendar, it will also understand that there is now an indirect, transitive relationship between GreeterLib and Date that it needs to manage.

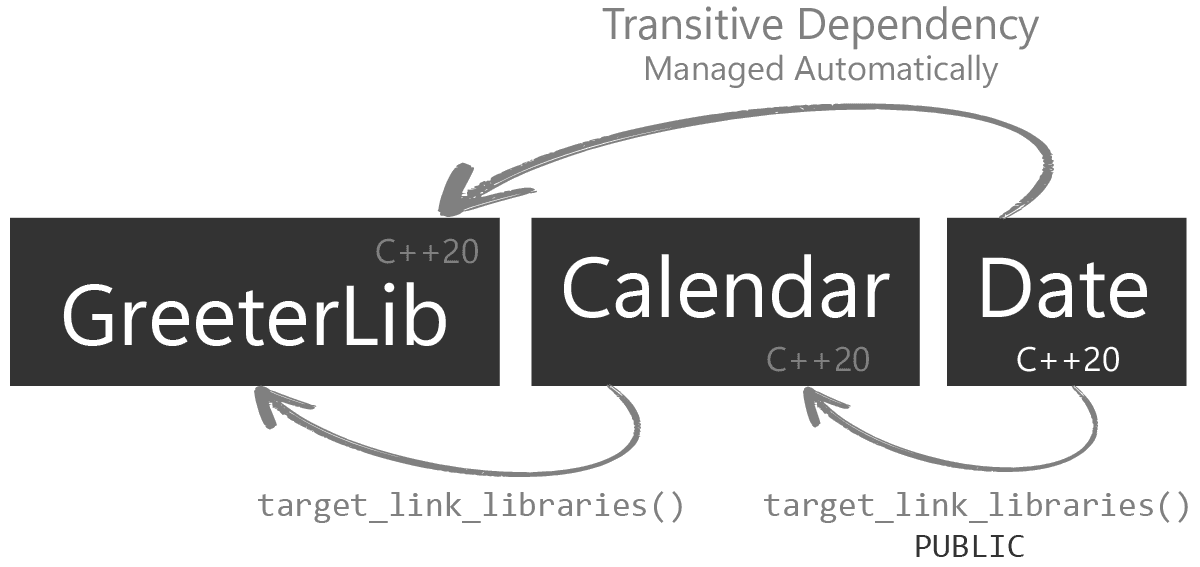

Diagram showing a transitive dependency being managed automatically

Default Visibility of Relationships

When we do not specify the visibility of a relationship within target_link_libraries(), the relationship is PRIVATE by default:

1# These are equivalent
2target_link_libraries(B C)
3target_link_libraries(B PRIVATE C)

This means that targets that link to B will not be aware that B links to C, and will therefore not inherit C's properties:

1# A PRIVATE relationship
2target_link_libraries(B C)
3
4# This links A to B, but does NOT link A to C
5# This is because B's relationship to C is PRIVATE
6target_link_libraries(A B)

We walk through a practical example of where PRIVATE relationships are useful in the next lesson.

Automatic Link Ordering

One of the most frustrating problems in traditional C/C++ builds is managing the link order. When you call the linker directly, the order in which you list your libraries matters. If library A uses functions from library B, you typically need to link them in the order A, then B.

Manually tracking these dependencies and ensuring the correct order for a project with dozens of libraries is a tedious and fragile process.

CMake completely solves this problem. It doesn't think in terms of a linear list of libraries. As we've seen earlier in the chapter, it thinks in terms of a dependency graph.

Every time you use target_link_libraries(A B), you are adding a connection to this graph, from A to B. When it's time to generate the final link command, CMake analyses the graph to generate a linear list of all the libraries. The algorithm that generate this list of targets ensures that they are ordered in a way that satisfies all of the dependencies.

Our only job is to accurately describe the direct dependencies for each target. CMake handles the rest. If App links to Renderer, and Renderer links to Core, CMake knows that the final link command must list them in an order that respects that chain.

Advanced

Directed Acyclic Graphs (DAGs) and Topological Sorting

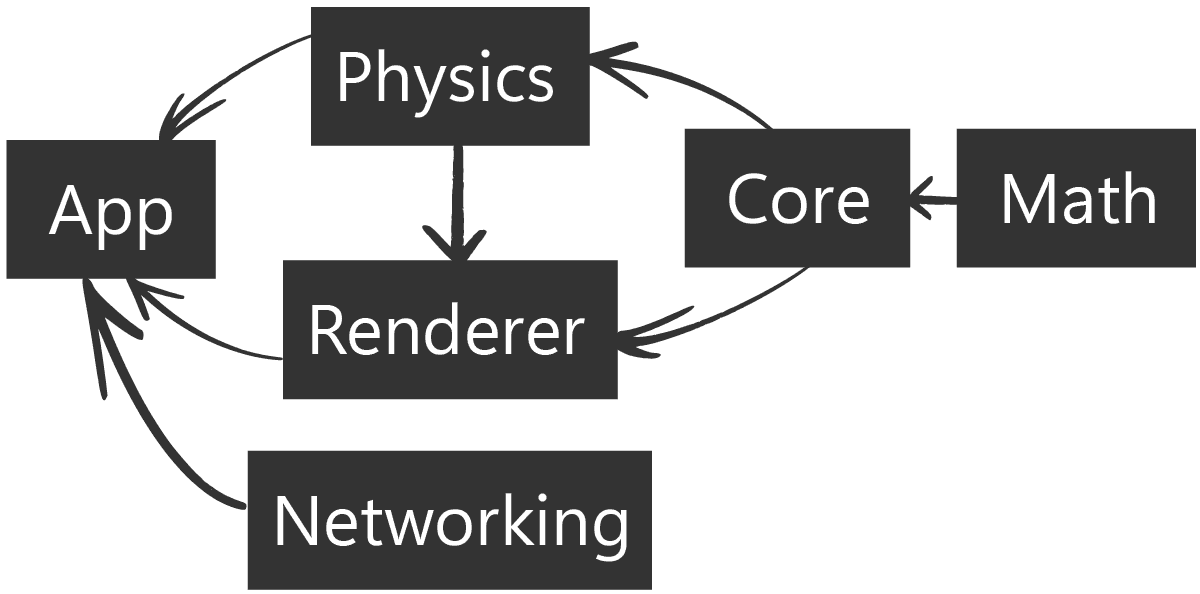

The dependency graph that is constructed by CMake (and most other build systems) is a directed acyclic graph, or DAG.

They are directed as the direction of dependencies (edges, in graph theory) between targets (called nodes or vertices) matters. Linking Core to Physics is different from linking Physics to Core.
A cycle within a graph is a situation where you can start at a node, such as Physics, and follow a series of connections that lead back to Physics. An acyclic graph is one that does not have any such cycles.

DAG's are widely used in computer science, as the algorithms that act upon them solve many common problems. For example, the algorithm that enables automatic link ordering is called topological sort. It analyses the DAG to create a linear list of targets that respects the dependency chain. If Physics depends on Core, then Physics would come after Core in the topologically sorted list.

Circular Dependencies

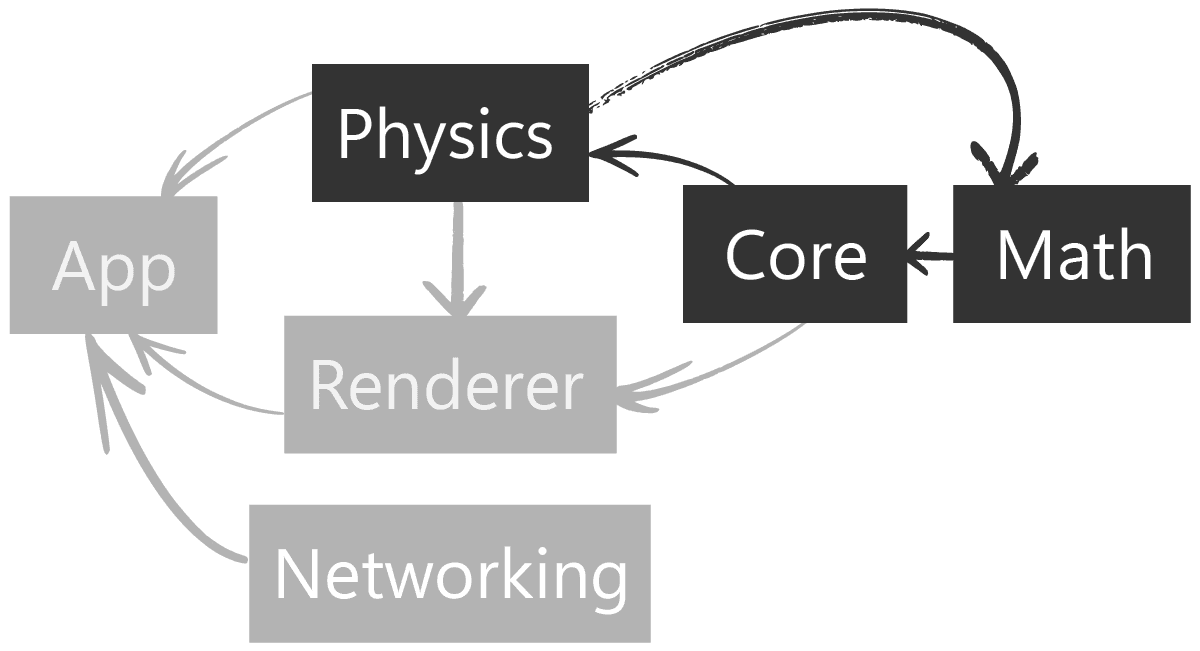

If our dependency graph contained a cycle, that would represent a circular dependency. For example, if Physics depends on Core, which depends on Math, which depends on Physics, then we introduce a cycle:

CMake, and most other build systems, cannot resolve circular dependencies. If we create one, we will get an error:

1target_link_libraries(A B)
2target_link_libraries(B A)

1CMake Error: The inter-target dependency graph contains the following cycle:
2  - "A" links to "B"
3  - "B" links to "A"
4This is not allowed.

Circular dependencies like this are almost always a sign of a design flaw in your project, which should be fixed regardless of any CMake limitations. Breaking a circular dependency typically involve one of the following options:

If the two components are so tightly coupled that reliance on this circular dependency is pervasive through one or both of the libraries, they can be merged into a single component
If the circular dependency is required for only a small piece of functionality, that part can be refactored so it exists entirely within one of the libraries, or within a new, third library that they both can use

Summary

This lesson pulled back the curtain on how CMake manages the complex web of relationships in a project. By thinking in terms of a graph rather than a list, CMake automates some of the most difficult parts of C++ build configuration.

Dependency Graph: Every target_link_libraries() call adds a directed edge to a graph. CMake uses this graph to understand the complete structure of your project.
Transitive Dependencies: When a link is PUBLIC, the dependency is passed on to consumers. If App links to LibA, and LibA publicly links to LibB, App automatically gets linked to LibB as well.
Automatic Link Order: CMake performs a topological sort on the dependency graph to determine the correct order for libraries on the linker command line, solving a common and frustrating build problem.
No Circular Dependencies: A direct or indirect dependency of a target on itself forms a cycle in the graph. CMake will report this as a fatal error, which usually indicates a flaw in your project's design.
