We've spent the last two chapters deep in the trenches of the C++ build process. We've manually wrangled compiler flags, linker paths, and platform-specific library names. We've seen how Makefiles can turn into unmaintainable monsters and how IDE project files lock us into a single vendor's ecosystem.

If you're feeling a bit overwhelmed by the complexity, that's a good sign. It means you understand the problem. Building C++ software, especially at scale, is hard.

Now, it's time to introduce the solution. This lesson marks our transition from understanding the problem to mastering the tool that solves it. Let's talk about why CMake has become the de-facto standard for building C++ projects.

Build Challenges in Complex Projects

As we saw in the , simple build automation tools like make or IDEs start to break down as a project grows. The core challenges they fail to address can be boiled down to a few key areas.

Portability: The "Works on My Machine" Nightmare

This is the number one problem. A Makefile written for GCC on Linux is useless on Windows. It uses Unix-style paths, relies on shell commands like rm, and calls g++ with flags that cl.exe (the MSVC compiler) doesn't understand.

An IDE project is even worse. A Visual Studio solution (.sln) is completely alien to an Xcode user on a Mac. To support multiple platforms, you end up maintaining multiple, parallel build scripts. When you add a new source file, you have to remember to add it to the Makefile, the .vcxproj file, and the .xcodeproj file. It's a recipe for disaster.

Reproducibility and Consistency

How can you guarantee that every developer on your team, plus your automated build server, is building the software in the exact same way?

Without a single, shared definition of the build process, inconsistencies creep in. One developer might have a slightly different set of compiler flags. Another might link against a different version of a library. This leads to bugs that are impossible to track down because the build is not reproducible.

Maintainability and Scalability

As a project grows to include dozens of libraries and executables, a single Makefile becomes an unreadable, tangled mess of rules and variables. IDE solutions with hundreds of projects are just as bad, with build settings hidden across thousands of lines of verbose XML that nobody wants to edit by hand.

Managing dependencies, setting compiler flags, and defining new build targets becomes a specialized, high-risk task that slows down development for everyone. The build system, which should be a helpful tool, becomes a major source of technical debt.

How CMake Helps

CMake's brilliance is that it doesn't try to be just another build system. Instead, it's a meta-build system.

This is the most important concept to understand. CMake does not compile your code. It doesn't run the linker. Instead, it generates the files that do.

You write a set of simple, high-level, platform-independent text files called CMakeLists.txt. These files describe your project: what your executable targets are, what source files they're built from, and what libraries they depend on.

Then, you run CMake and tell it what kind of project you want to generate. This is the "generator" step.

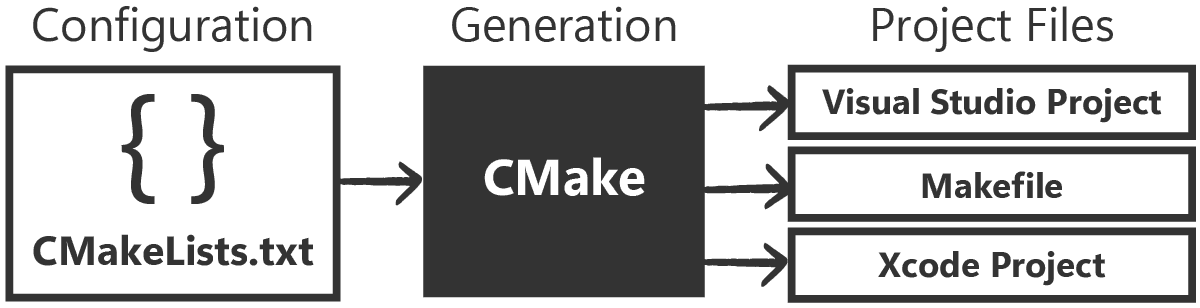

Diagram showing the CMake generation process

We don't consider these generated files to be part of our project - they're just temporary. They are generated when required, and deleted when they are no longer needed. It is only the CMakeLists.txt file that gets maintained in our project.

The process gives you the best of both worlds:

A Single Source of Truth: Your CMakeLists.txt files are the one and only place where your project's build logic is defined. They are plain text, easy to read, and live in your version control system right alongside your source code.
Native Tool Performance: You still get to use the best, most performant build tools for each platform (like make or Ninja on Linux, and the highly optimized MSBuild engine in Visual Studio) without having to write their configuration files by hand.

CMake vs Compiler Commands

The following gcc terminal command includes 3 pieces of build configuration:

The output will be an executable called my_app, compiled from a main.cpp source file
It provides an include directory, which the source code might require for some #include directive
It defines a DEBUG preprocessor macro, which the source code might be checking for in some #ifdef directive

1g++ -c main.cpp -o main.o -I/path/to/headers -DDEBUG

CMake provides a high-level, descriptive language. Instead of writing low-level compiler commands, you use abstract commands that express your intent.

The equivalent configuration in a CMakeLists.txt file would look like this:

1add_executable(my_app main.cpp)
2target_include_directories(my_app PUBLIC /path/to/headers)
3target_compile_definitions(my_app PUBLIC DEBUG)

Because these commands are contained within a file (CMakeLists.txt) rather than an ad-hoc terminal command, this configuration is also easier to share. It can saved and included as a first-class part of your project, just like your source code.

When another developer then downloads your project, their installation of CMake can use this file to generate correct, platform-specific commands in whichever format they prefer.

CMake vs. Traditional Build Systems

Let's make a direct comparison to see how CMake's approach solves the problems we identified.

CMake vs. Makefiles

Feature	Makefile	CMake
Portability	Low. Tied to a specific shell and compiler.	High. Generates Makefiles, VS solutions, etc., from one script.
Language	Low-level, imperative commands.	High-level, descriptive targets and properties.
Dependencies	Manual tracking. Error-prone.	Automatic dependency detection is built-in
Maintainability	Becomes very complex and unreadable in large projects.	Modular design with `add_subdirectory` keeps projects clean.

We'll cover CMake's dependency detection mechanisms and modularity later in the course.

In general, a big difference is one of philosophy. A Makefile is a script that says how to build - it includes things like the specific compiler flags that should be used.

A CMakeLists.txt file is a description of what to build. CMake handles the "how" for you.

CMake vs. IDE Projects (e.g., Visual Studio)

Feature	IDE Project (`.vcxproj`)	CMake
Portability	None. Locked into a single IDE and OS.	High. Generate a project for any supported IDE.
Version Control	Poor. XML files are verbose and cause merge conflicts.	Excellent. `CMakeLists.txt` are clean, human-readable text files.
Automation	Difficult. Requires platform-specific tools like `msbuild.exe`.	Trivial. `cmake --build` works everywhere.
Source of Truth	Opaque. Build logic is hidden in GUI property pages.	Clear. `CMakeLists.txt` is the single, editable source of truth.

Using an IDE's native project system is convenient for solo developers on a single platform. But for any collaborative, cross-platform, or automated project, CMake is usually a better choice.

It lets you use your favorite IDE for editing and debugging, while keeping the underlying build definition portable and clean.

In fact, most modern IDEs, including Visual Studio, VS Code, and CLion, now have first-class, integrated support for CMake projects.

Summary

We've now seen the chasm between the low-level intracacies of managing projects and the cleaner, more organized approach we'd prefer to use. By acting as a meta-build system, CMake helps bridge this chasm:

It's Portable: One CMakeLists.txt can generate a build system for Windows, Linux, and macOS.
It's Maintainable: Its high-level, descriptive language keeps build scripts clean and readable, even for large projects.
It's the Industry Standard: From tiny open-source libraries to massive AAA game engines, CMake is increasingly becoming the tool of choice.

Now that we understand why CMake is so useless, let's finally start to use it!
